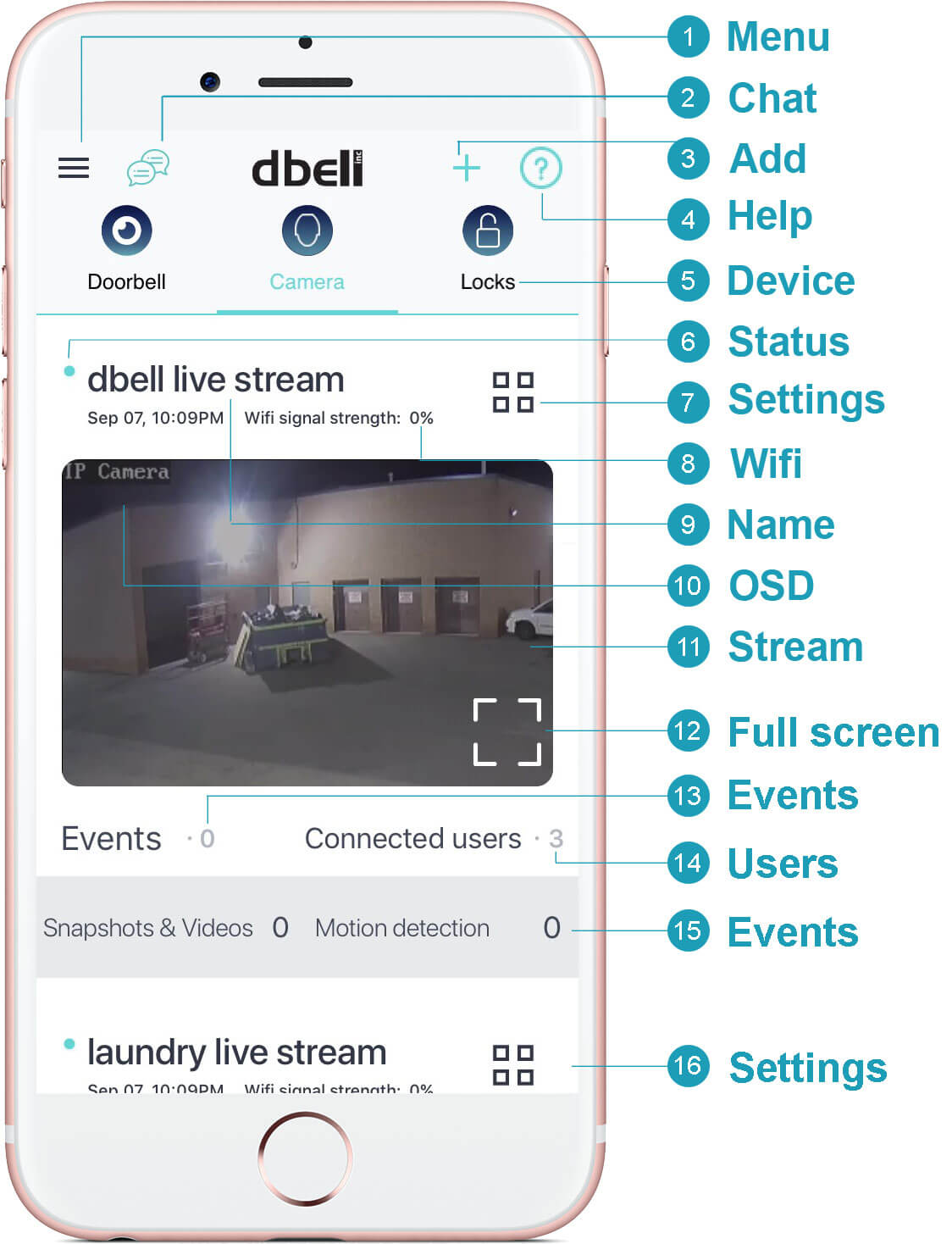

Home screen

Home screen is the hub for your dbell system.

Icon	Menu
	1. Menu
	2. My Conversations
	3. Extend your experience
	4. Help
	5. Device Type
	6. dbell connection status
	7. Your dbell name
	8. Settings
	9. Wi-Fi signal strength
	10. Device name
	11. Live stream
	12. Full screen
	13. Event counts
	14. Connected user(s)
	15. Events
	16. 2nd/3rd/4th dbell stream



Know your dbell: dbell product description

Note: it is very important that the dbell is online in order to save changes. If the dbell is disconnected or offline, you will not be able to save any changes.

1. Menu: To access the device menu, simply Tap the 3 lines on the top-left corner.

2. My conversations: To access conversations with Tech support.

3. Extend your experience (+): The plus symbol located at the top right corner of the page will lead you to a section that allows you to add more devices onto your app

4. Help: Online Knowledgebase, contact support

5. Device Type

Your dbell device type, like dbell video doorbell, dbell PTZ camera, dbell Relay etc.

6.  dbell connection status

Display the status of your dbell device if it is online or offline

7. Your dbell name

Displays name of your device, like home, office, front door, back door etc.

8. Settings

Settings (4-square): The 4-square symbol located on the right hand side of each doorbell on the main screen will lead you to the settings of that specific doorbell

9. Wi-Fi signal strength

Shows Wi-fi signal strength of your connected device if it is connected by Wifi

10. Device name

Displays name of your device, like home, office, front door, back door etc.

11. Live stream

Live video stream of your dbell device

12. Full screen

Full Screen: First select which doorbell you would like to view in full screen mode. If you have multiple doorbells then simply tap on whichever small screen you would like to expand.

In this mode you can see the live stream, take photos, videos and communicate with others that are outside. You will be able to hear and see everything that's happening by your dbell.

13. Event counts

Shows total event counts

14. Connected user(s)

Shows how many user(s) are connected. It's a good security measure, you always know how many users are connected.

15. Events

Events: The events displayed under your doorbell stream are divided into 3 categories

-Visitors displaying how many people press the doorbell button

-Motion detection displaying how many motion triggers occurred that day

-Audio detection displaying how many audio triggers occurred that day

-Snapshot and video displaying how many snapshot and video rec occurred that day

16. 2nd dbell stream

Shows your multiple dbell stream

1. Side Menu: To access the device menu, simply Tap the 3 lines on the top-left corner.

Add Family: Add your family members to join your dbell by sending invite.

Edit : The two squares symbol located at the top right corner of the page will lead you to a section where you are able to delete doorbells from your account, change the order of doorbells displayed on your main screen along with properties for your doorbell

Options: This section opens an options menu for all your dbells. From here you have the ability to change your notification, sound and account options along with additional information about dbell

Order Accessories: This section opens a page where you can browse through our products and order accessories that will be compatible with your dbell doorbell

Help: This section gives you the ability to contact us through support or making a ticket. You can also give us feedback about our device, app or service along with accessing our knowledge base to help you through app setup and configuration

Logout: Allows to login to your dbell account

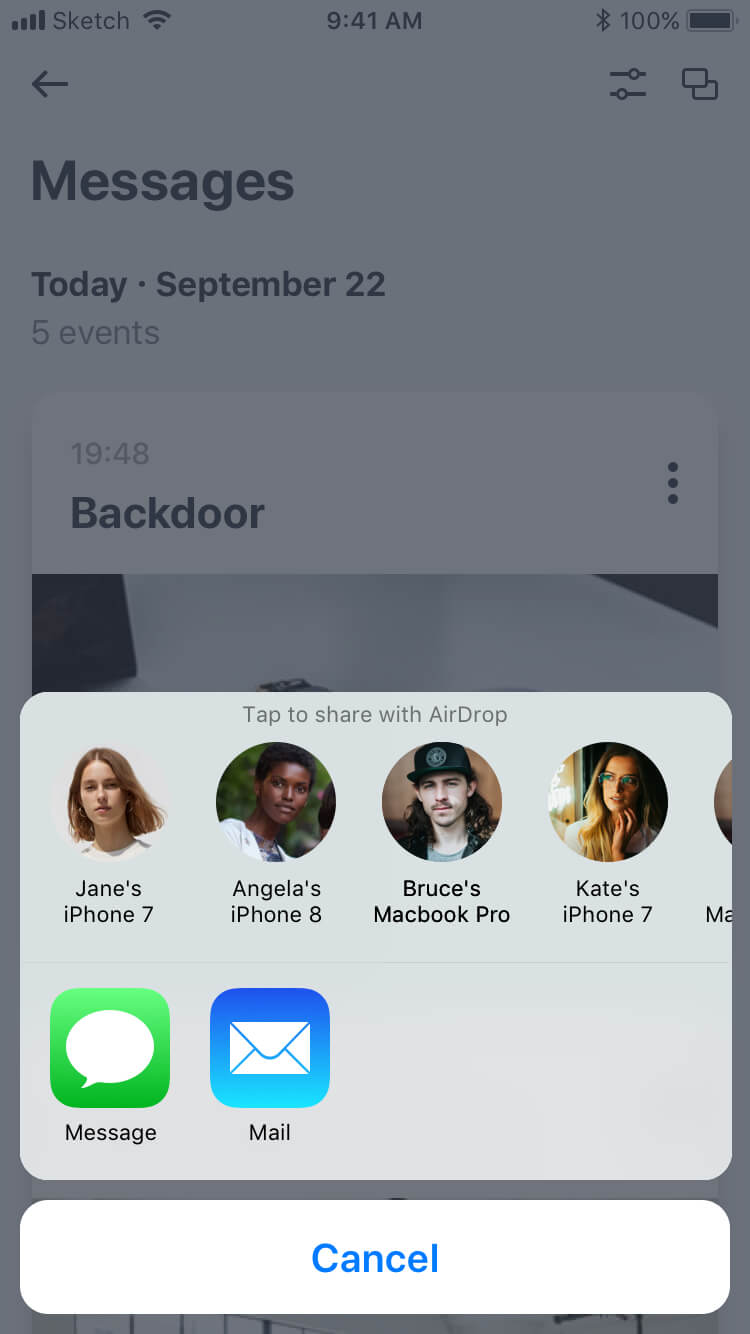

You can also share the events image by holding the image for few seconds until the POP-UP menu appears and by selecting "Share"

Microphone: Press and hold to Talk, release to listen

Rec: Press to record live video to your phone. Press again to stop the recording.

Snapshot: Pressing once takes a snapshot from the live steam and saves it to your phone
